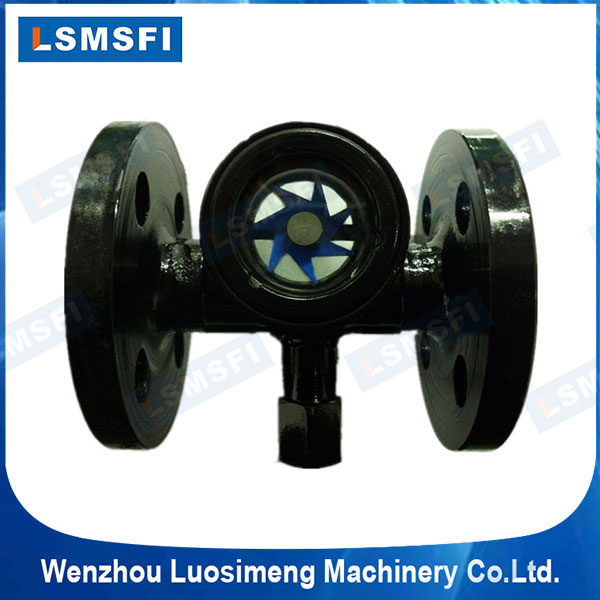

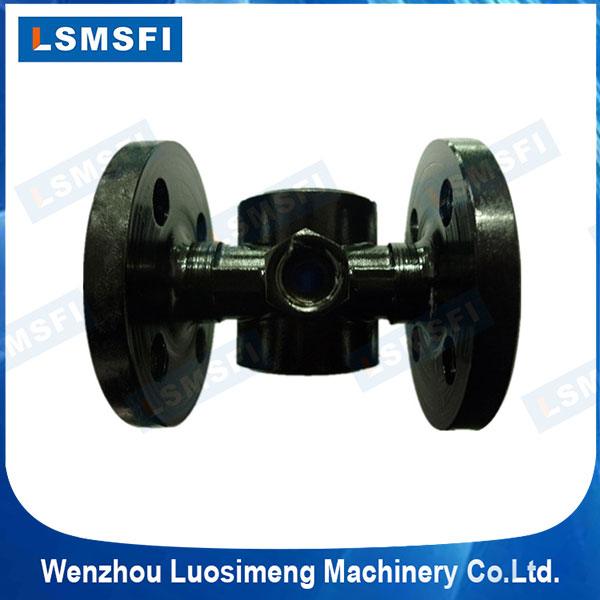

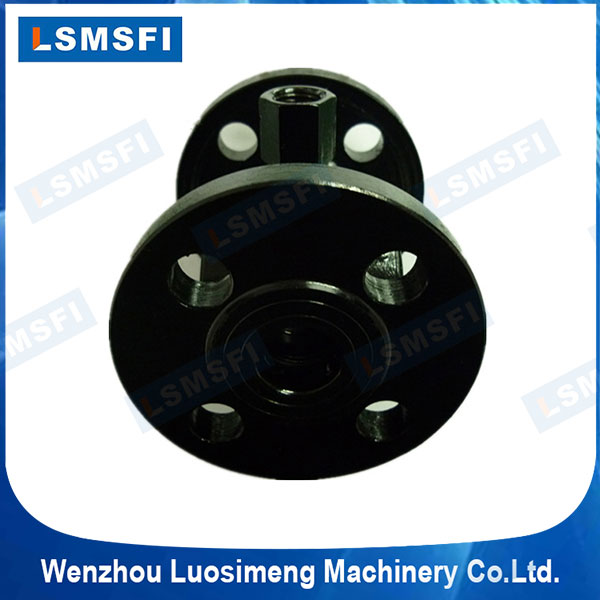

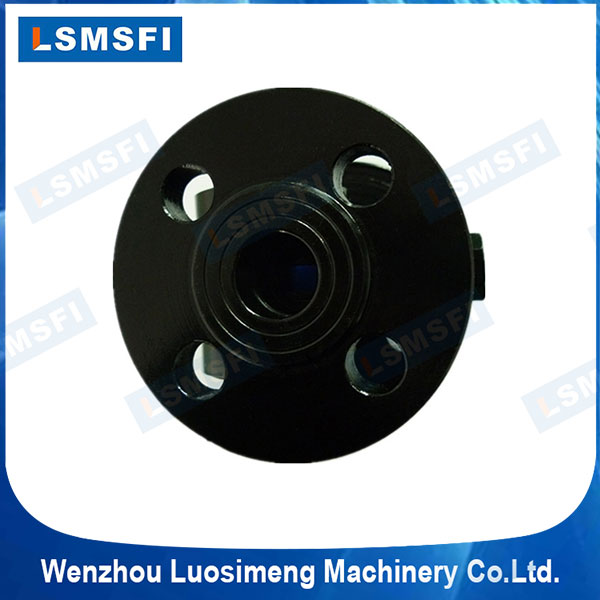

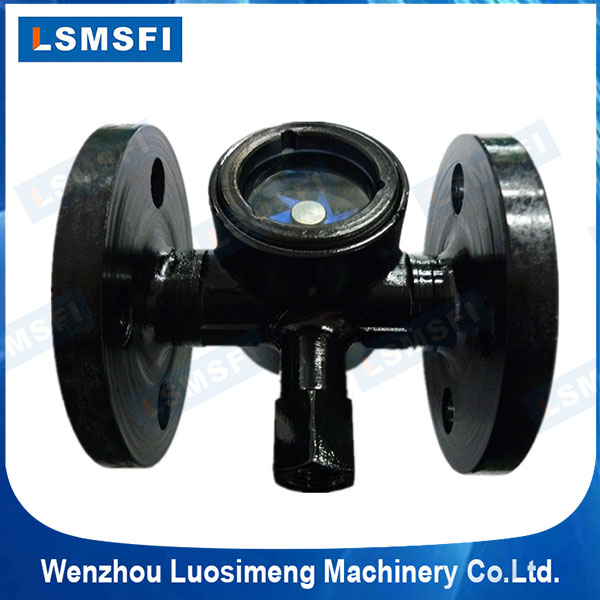

SG-YL41-10T Sight Flow Indicators with Meter
MOQ:1Piece
Supplier Ability:5000 Pcs/Year
Price Term:EXW-Factory,FOB,CNF,CIF
Payment Terms:T/T,Western Union,Paypal,L/C
Type:SG-YL41-10T Brand:LSMSFI Size Range:1/2"Inch to 1 1/4"Inch
Body&Cap&Link Material:Carbon Steel(WCB),304/316/316L Stainless Steel
Seal Material:PTFE(White)/NBR(Black)/Graphite(Black) Sealing Gasket
Impeller Material:PTFE(Red/Blue)/Plastic(Red)
Window Material:Tempered Glass/Quartz Glass/Borosilicate Glass/Aluminosilicate Glass
Pressure Level:1.6MPa-5.0MPa Temperature Level:-30°C to 100°C;-50°C to 200°C/1000°C
End Connection:ANSI 150LB/300LB,JIK 5K/10K,Ghost,DIN,GB Flange;NPT,BSPP,BSPT Female Thread.
Application Medium:Liquids,Gases,Petroleum,Solid Liquid and Water etc.
Packing Method:Carton Box or Plywood Box
Delivery Time:Within 10 days for 100 pieces
Product Warranty:One Year without man-made destruction
