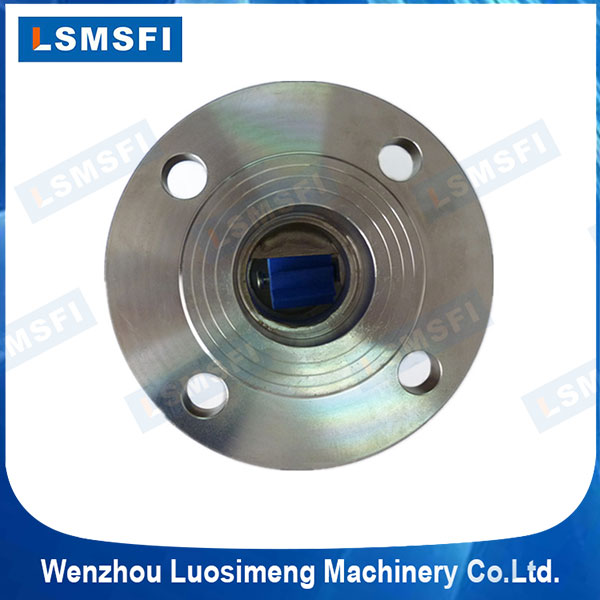

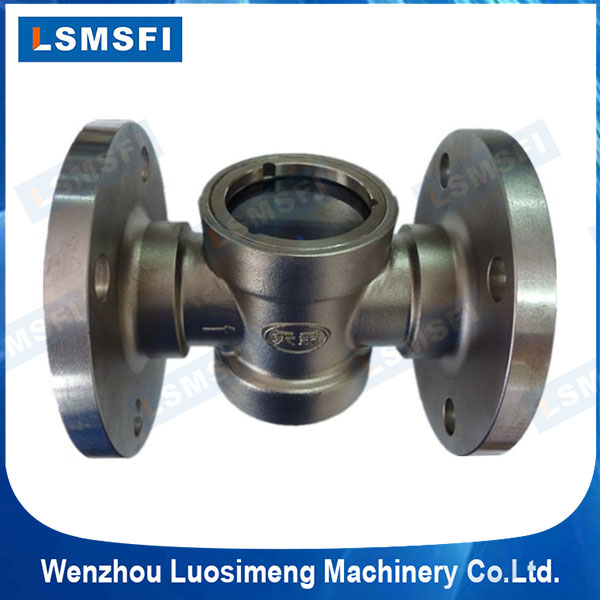

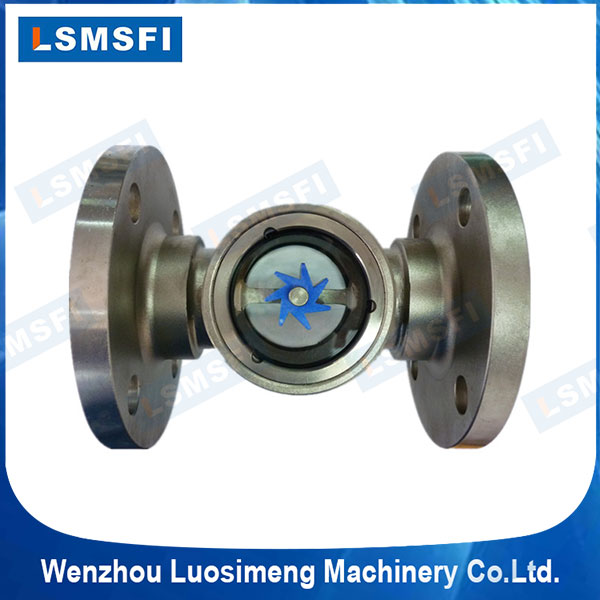

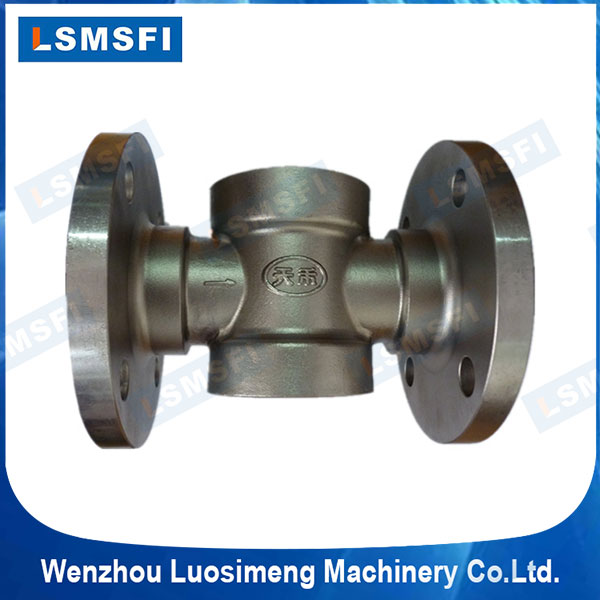

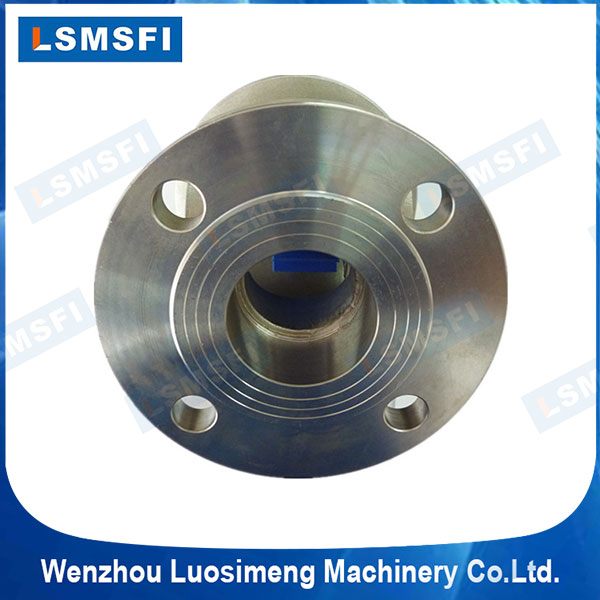

SG-YL41-205 Double Window Water Flow Indicator

  • SG-YL41-205 Double Window Water Flow Indicator
  • SG-YL41-205 Double Window Water Flow Indicator
  • SG-YL41-205 Double Window Water Flow Indicator
  • SG-YL41-205 Double Window Water Flow Indicator
  • SG-YL41-205 Double Window Water Flow Indicator
SG-YL41-205 Double Window Water Flow Indicator

MOQ:1Piece
Supplier Ability:5000 Pcs/Year
Price Term:EXW-Factory,FOB,CNF,CIF
Payment Terms:T/T,Western Union,Paypal,L/C

Type:SG-YL41-205             Brand:LSMSFI                Size Range:1/2"Inch to 2 1/2"Inch
Body&Cap&Link Material:Carbon Steel(WCB),304/316/316L Stainless Steel
Seal Material:PTFE(White)/NBR/Graphite(Black) Sealing Gasket
Impeller Material:PTFE/Plastic(Red/Blue)
Window Material:Tempered Glass/Quartz Glass/Borosilicate Glass/Aluminosilicate Glass
Pressure Level:1.6MPa-5.0MPa                              Temperature Level:-30°C to 100°C;-50°C to 200°C/1000°C
End Connection:ANSI 150LB/300LB,JIS 5K/10K,DIN,Ghost and GB Flange.
Application Medium:Liquids,Gases,Petroleum,Solid Liquid and Water etc.
Packing Method:Carton Box or Plywood Box
Delivery Time:Within 10 days for 100 pieces
Product Warranty:One Year without man-made destruction
