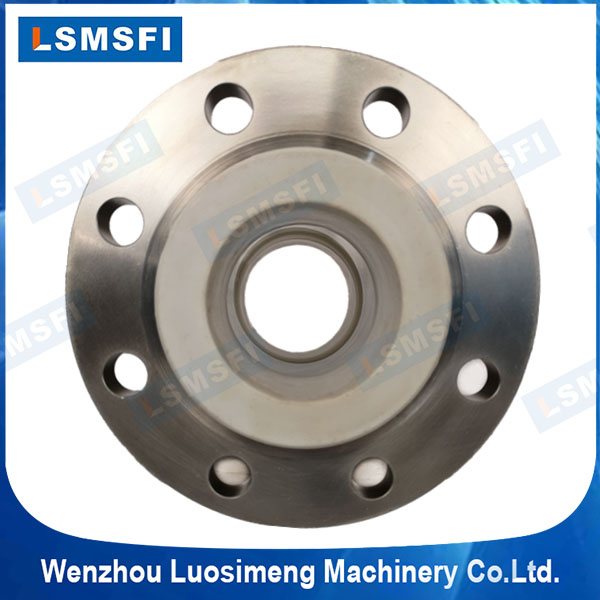

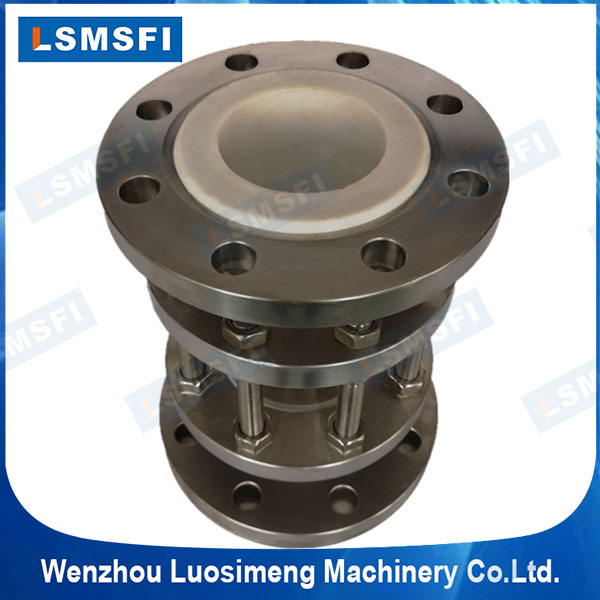

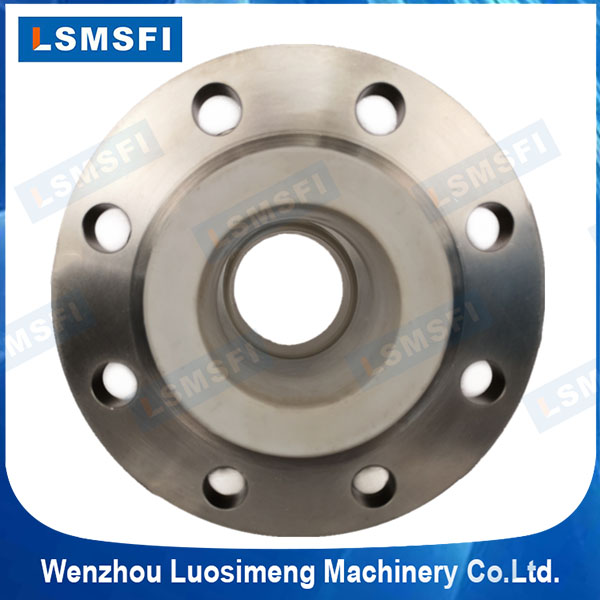

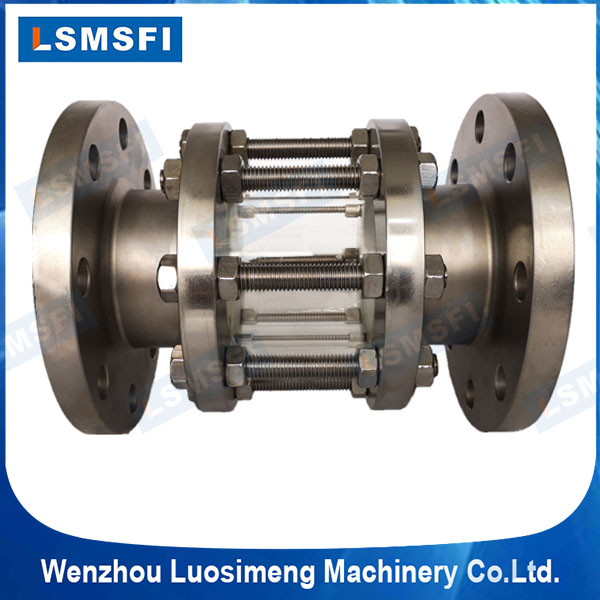

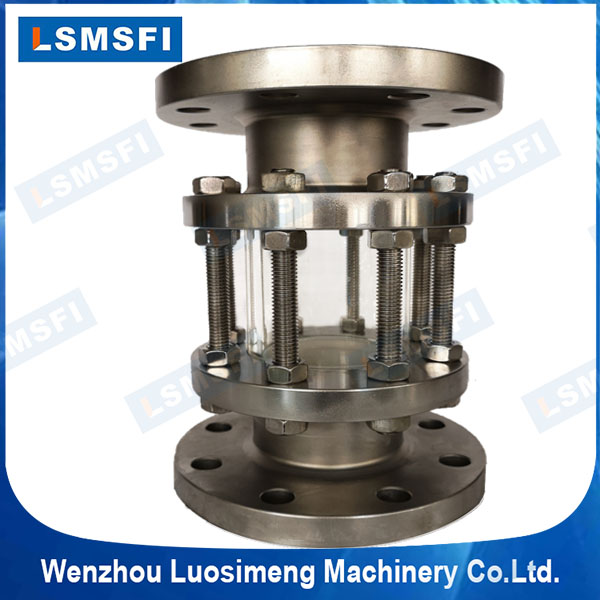

SG-ZT300 PTFE Lining Flanged Sight Glass

MOQ:1Piece
Supplier Ability:5000 Pcs/Year
Price Term:EXW-Factory,FOB,CNF,CIF
Payment Terms:T/T,Western Union,Paypal,L/C

Type:SG-ZT300 Brand:LSMSFI Size Range:1/2"Inch to 12"Inch

Body&Flange&Link&Bolt Material:Carbon Steel(WCB),304/316/316L Stainless Steel

Seal Material:PTFE(White)/NBR(Black) Sealing Gasket

Window Material:Tempered Glass/Quartz Glass

Pressure Level:0.6MPa/6Bar-1.0MPa/10Bar Temperature Level:-30°C to 100°C;-50°C to 200°C

End Connection:ANSI 150LB/300LB,JIS 5K/10K,DIN,Ghost and GB Flange.

Application Medium:Liquids,Gases,Petroleum,Solid Liquid and Water etc.

Packing Method:Carton Box or Plywood Box

Delivery Time:Within 10 days for 100 pieces

Product Warranty:One Year without man-made destruction
