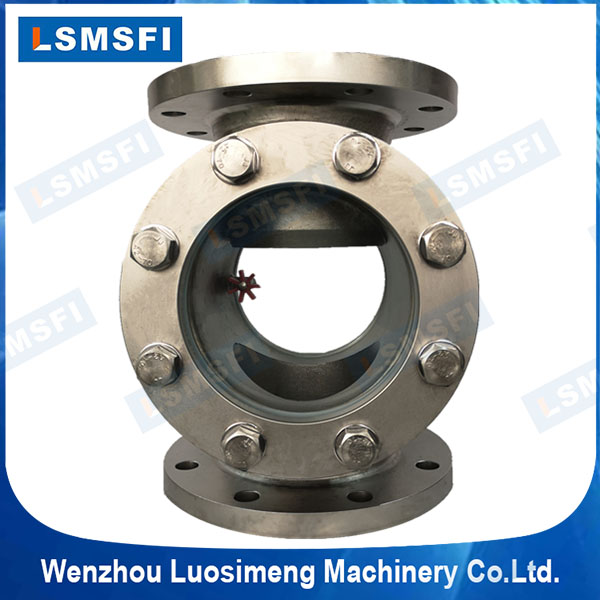

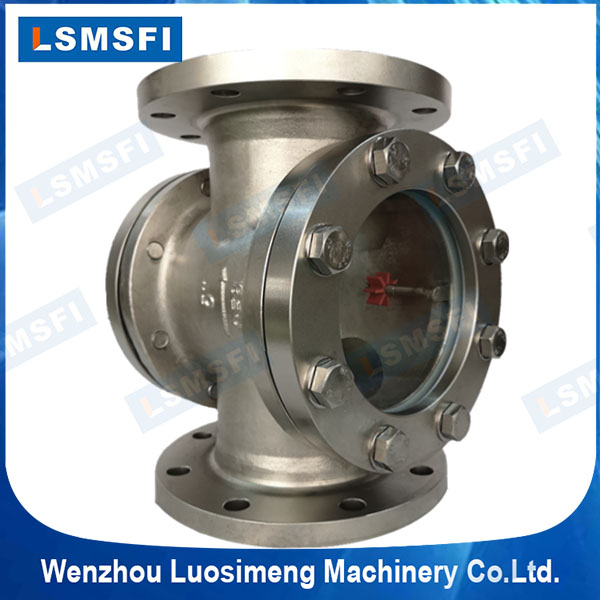

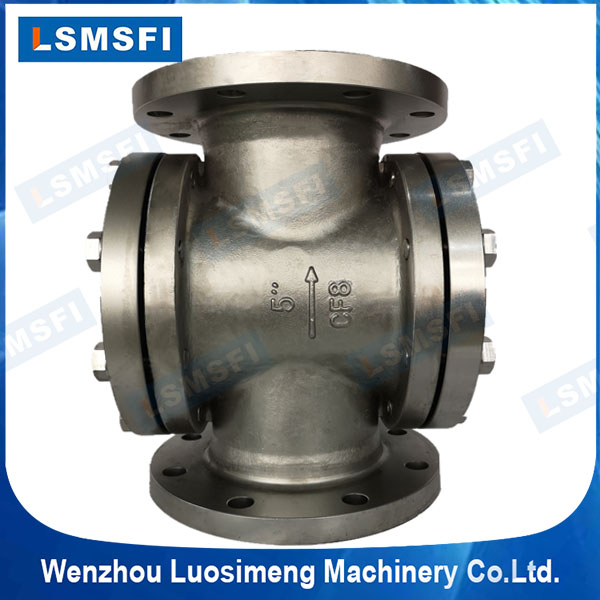

SG-YL41-205 LSMSFI Sight Flow Indicator Manufacturer

Type:SG-YL41-205             Brand:LSMSFI                Size Range:12"Inch to 20"Inch

Body&Cap&Bolt&Link Material:Carbon Steel(WCB),304/316/316L Stainless Steel

Seal Material:PTFE(White)/NBR/Graphite(Black) Sealing Gasket

Impeller Material:PTFE/Plastic(Red/Blue)

Window Material:Tempered Glass/Quartz Glass/Borosilicate Glass/Aluminosilicate Glass

Pressure Level:1.6MPa-5.0MPa                              Temperature Level:-30°C to 100°C;-50°C to 200°C/1000°C

End Connection:ANSI 150LB/300LB,JIS 5K/10K,DIN,Ghost and GB Flange.

Application Medium:Liquids,Gases,Petroleum,Solid Liquid and Water etc.

Packing Method:Carton Box or Plywood Box

Delivery Time:Within 10 days for 100 pieces

Product Warranty:One Year without man-made destruction
