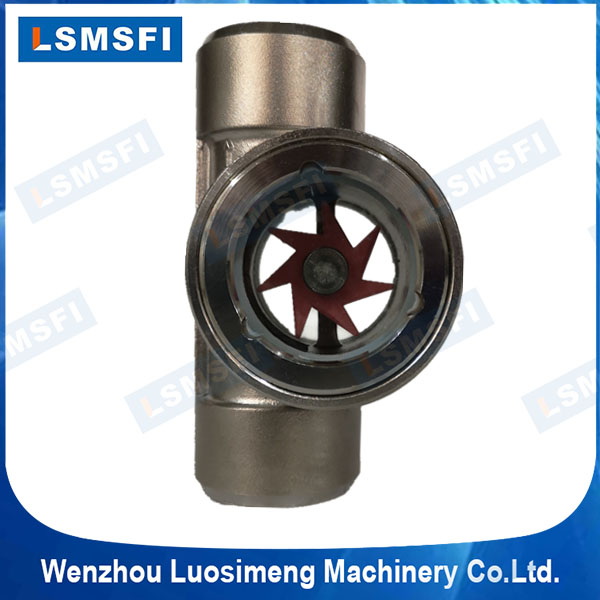

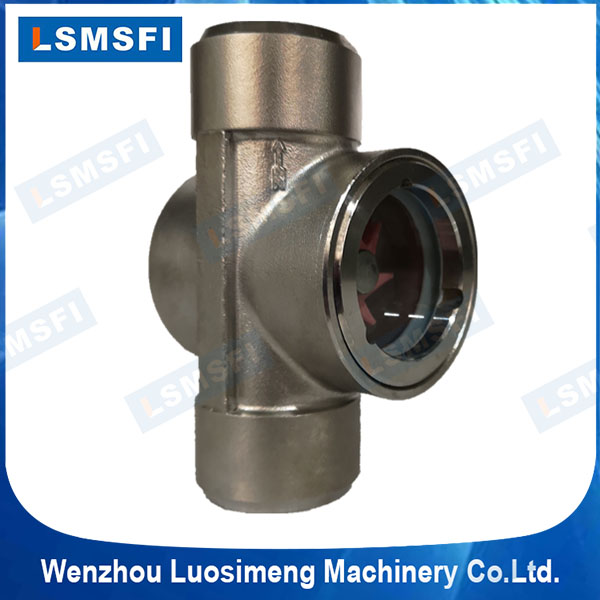

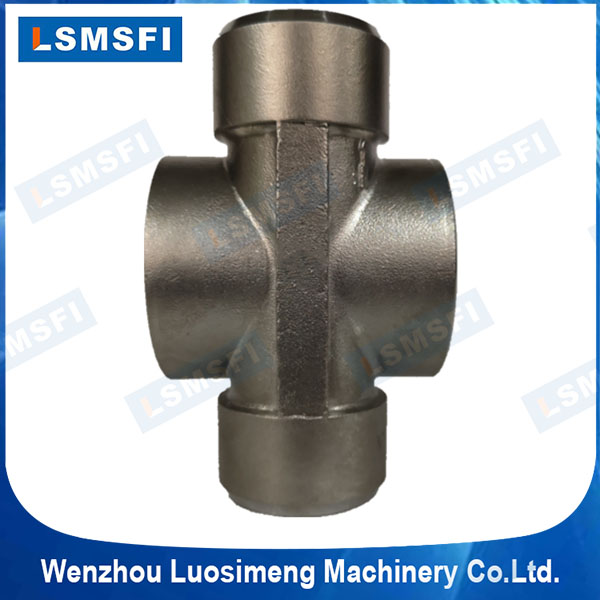

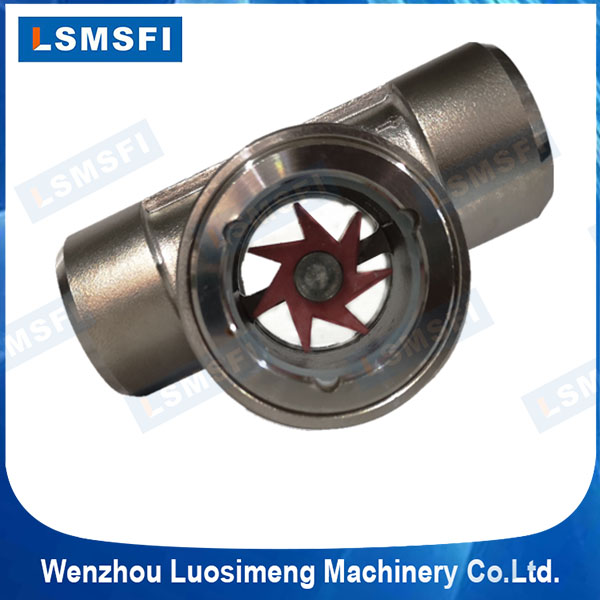

SG-YL61-1 LSMSFI Rotor Sight Flow Indicator

Type:SG-YL61-1             Brand:LSMSFI              Size Range:1/8"Inch to 2"Inch

Body&Cap&Link Material:Carbon Steel(WCB),304/316/316L Stainless Steel

Seal Material:PTFE(White)/NBR(Black)/Graphite(Black) Sealing Gasket

Impeller Material:PTFE(Red/Blue)/Plastic(Red)

Window Material:Tempered Glass/Quartz Glass/Borosilicate Glass/Aluminosilicate Glass

Pressure Level:1.6MPa-5.0MPa                        Temperature Level:-30°C to 100°C;-50°C to 200°C/1000°C

End Connection:Butt Weld/Socket Weld.

Application Medium:Liquids,Gases,Petroleum,Solid Liquid and Water etc.

Packing Method:Carton Box or Plywood Box

Delivery Time:Within 10 days for 100 pieces

Product Warranty:One Year without man-made destruction
